GC200L-2 稱重式灌裝機

▼整機尺寸:

整機尺寸（長×寬×高）:2100mm×1600mm×2650mm

Overall dimensions (length×width×height)：2100mm×1600mm×2650mm

▼技術參數Technical Parameters:

2.1、本機的各主要技術參數 / The main technical parameters of this machine

灌裝容器口徑:≥Φ50mm（可定製）/ Filling container caliber:≥Φ50mm (customizable)

灌裝容器直徑:Φ500mm-700mm(可定製）/ Filling container diameter:Φ500mm-700mm (customizable)

灌裝容器高度:900mm(根據客戶要求定製）/ Filling container height 900mm(customized according to customer requirements)

灌裝容量:200L / Filling capacity:200L

灌裝誤差:≤±0.2％（以水為(wei) 介質）/ Filling error ≤±0.2% : (using water as medium)

灌裝頭數:2 / Number of filling heads:2

生產(chan) 能力 :≤100桶/小時 / Production capacity: ≤100 drums/hour

需備功率:2.5KW / Required power:2.5KW

2.2、設備工作要求 / Equipment working requirements

電源:380V 50Hz / Power supply:380V 50Hz

需備氣源:0.6MPa潔淨穩定氣源 / Need to prepare air source:0.6MPa clean and stable air source

工作環境: 應隔離強電磁場源（嚴(yan) 禁用於(yu) 潛在爆炸的環境）

Working environment:should isolate the source of strong electromagnetic field (it is strictly prohibited to use in potentially explosive environment)

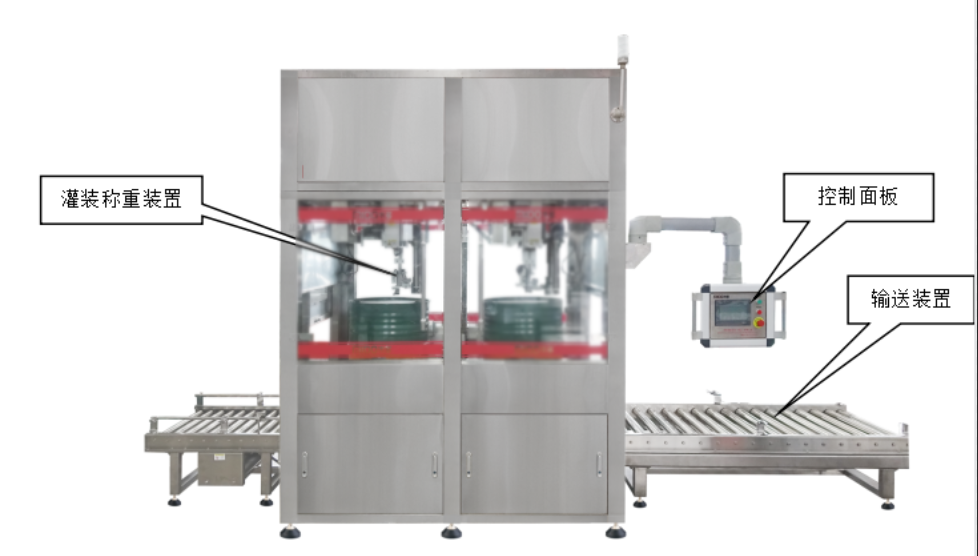

▼工藝結構組成:

Process structure composition

1.1、本機主要由電控係統、稱重係統、輸送裝置、光電檢測、灌裝裝置、傳(chuan) 動係統等部分組成。

1.2、電器控製部分則由PLC可編程電腦程序控製器，變頻調速器組成，集成度高，控製能力強，運行可靠。應用觸摸屏技術，使機器的操作更可靠、方便，人機界麵更加友好。光電傳(chuan) 感器、編碼器等根據客戶要求定製。

▼Describe:

1.1. This machine is mainly composed of electronic control system, weighing system, conveying device, photoelectric detection, filling device, transmission system and other parts.

1.2. The electrical control part is composed of PLC programmable computer program controller and frequency conversion speed regulator, with high integration, strong control ability and reliable operation. Application of touch screen technology makes the operation of the machine more reliable and convenient, and the man-machine interface is more friendly. Photoelectric sensors, encoders, etc. are all advanced sensing elements, so that the machine's mechatronics has a perfect performance

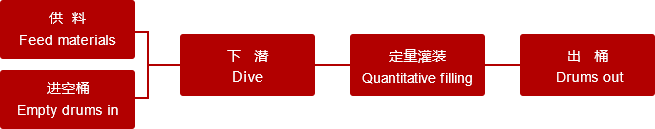

▼包裝工藝流程 Packaging process


充填過程

輸送裝置將排列在進桶端的空桶輸送到灌裝工位，進桶檢測光電計數滿後，下潛氣缸拉動下料嘴下潛，當下料嘴下潛到最低點後下料嘴定量充填物料，下料嘴上升，輸送裝置將滿桶輸出，出桶檢測光電計數滿後進入下一循環，至此充填過程完成。

▼Describe:

The conveying device conveys the empty drums arranged at the drums place to the filling station. After detected by the photoelectric ,the count is full, the submersible cylinder pulls the feeding nozzle to dive. When the feeding nozzle dives to the lowest point, the feeding nozzle quantitatively fills the material , The feeding nozzle rises, and the conveying device will output the full drum. After the detection photoelectric count is full, it enters the next cycle, and the filling process is completed.
