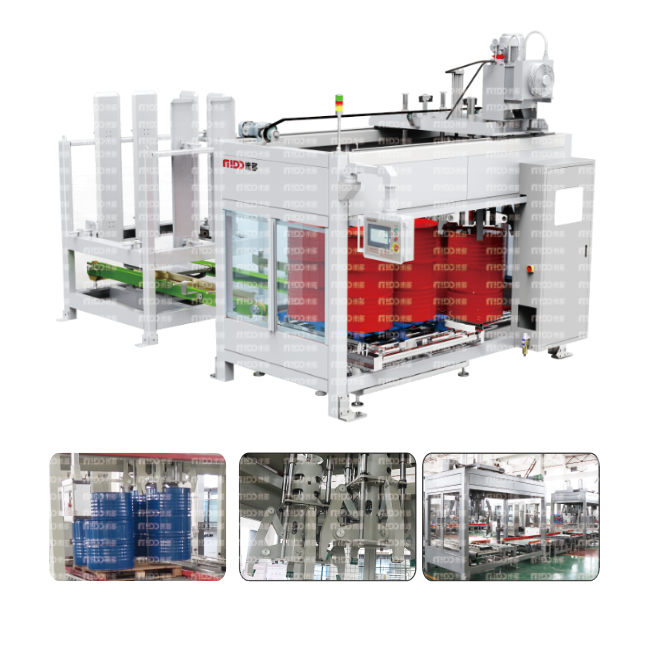

MSG-200L移栽式碼垛機

▼功能描述：

本產(chan) 品是一款機電一體(ti) 化高新技術產(chan) 品，適用於(yu) 200L產(chan) 品包裝的需求。本機采用可編程控製器（PLC）進行控製，觸摸屏操作，具有工作穩定可靠，操作簡便，生產(chan) 效率高，正常運轉時無須人工幹預，節省了勞動成本。

▼Describe：

MS200L-2 transfer palletizer is a high-tech product of mechatronics, suitable for 200L product packaging needs.

This machine adopts programmable logic controller (PLC) for control and touch screen operation. It has stable and reliable work, simple operation, high production efficiency, fully automatic operation process, no manual intervention during normal operation, saving labor costs.

▼整機主要技術參數： Main technical parameters

• 碼垛方式:一抓兩(liang) 桶，一垛四桶 / Palletizing method：One catch two drums, one stack four drums

• 碼垛規格：200L桶 / Palletizing specification：200L drum

• 生產(chan) 能力 :≤120桶/時 / Production capacity：≤120 drums/hour

• 垛板尺寸（長×寬×高）:根據客戶尺寸 / Stack pallet size：(length × width × height) according to customer size

• 需備功率:5KW / Required power：5KW

• 電源：380V 50Hz / Power supply:380V 50Hz

• 需備氣源:0.6MPa潔淨穩定氣源 / Required air source: 0.6MPa clean and stable air source

▼工藝結構組成： Whole machine structure

1.1、本機主要由電控係統、輸送裝置、光電檢測、進桶裝置、抓取、釋放裝置、升降裝置、傳(chuan) 動係統等部分組成。
1.2、電器控製部分則由PLC可編程電腦程序控製器，變頻調速器組成，集成度高，控製能力強，運行可靠。應用觸摸屏技術，使機器的操作更可靠、方便，人機界麵更加友好。

▼Describe：

1.1. This machine is mainly composed of electric control system, conveying device, photoelectric detection, drum feeding device, grabbing, releasing device, lifting device, transmission system and other parts.

1.2. The electrical control part is composed of PLC programmable computer program controller and frequency conversion speed regulator, with high integration, strong control ability and reliable operation. Application of touch screen technology makes the operation of the machine more reliable and convenient, and the manmachine interface is more friendly. Photoelectric sensors, encoders, etc. are all advanced sensing elements, so that the machine's electromechanical integration has been perfected.

▼包裝工藝流程：Packaging process

組 4.jpg.png

▼碼垛過程：

碼垛機運作時將輸送機輸送來的產(chan) 品按順序排列碼放在托盤、棧板（木質、塑膠）上，進行自動堆碼，可後推出，便於(yu) 叉車運至倉(cang) 庫儲(chu) 存。

▼Palletizing process ：

When the palletizer is in operation, the products conveyed by the conveyor are placed on pallets and pallets (wood, plastic) according to a certain arrangement, for automatic stacking, and can be pushed out later, which is convenient for forklifts to be transported to the warehouse for storage.
